TECHNICAL SPECIFICATION

--------------------------------------------------------------------------------------------------

Engine

Type Air-cooled, 4-stroke single cylinder OHC

Displacement 97.2 cc

Max. Power 5.74 kW (7.8 Ps) at 7500 rpm

Max. Torque 0.82 kg-m (8.04 N.m) at 4500 rpm

Bore x Stroke 50.0 x 49.5 mm

Starting Kick start / Self start

Ingnition DC - Digital CDI

Transmission & Chassis

Cluch Multi-plate wet

Gear box 4 Speed constant mesh

Chassis Type Tubular double cradle frame

Suspension

Front Telescopic hydraulic shock absorbers

Rear Swing arm with hydraulic shock absorber

Brakes

Front Brake Disc Brake - Dia 240 mm

Rear Brake Drum Internal expanding shoe type (130 mm)

Wheels & Tyres

Rim Size Front 18 x 1.60, Spoke wheels / Cast wheel

Rim Size Rear 18 x 1.60, Spoke wheels / Cast wheel

Tyre Size Front 2.75 x 18 - 4 PR / 42 P

Tyre Size Rear 3.00 x 18 - 6 P / 52 PR

Features

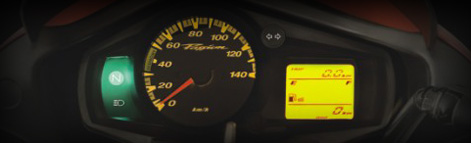

> Digital-Analog speedometer > Front disc option

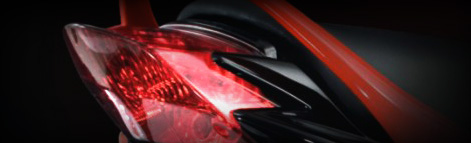

> Stylish visor with black-tinted windscreen & clear-lens indicator > Radical twin bulb tall light

> Stylish new generation graphics > New age high performance APDV engine

Electricals

Battery 12V-3 Ah

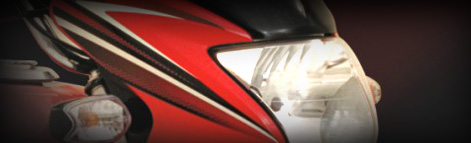

Head Light 12V-35W/Halogen Bulb, Trapezoidal, MFR

Tail Stop Lamp 12V - 5 / 10 W (Twin bulb), MFR

Turn Signal Lamp 12V - 10W (Amber bulb) x 4 nos MFR, clear lens

Dimensions

Length 1980 mm

Width 725 mm

Height 1075 mm

Wheelbase 1235 mm

Saddle Height 795 mm

Ground Clearance 165 mm

Fuel Tank Capacity 12.8 ltrs. ( Min)

Reserve 1 ltrs. ( Usable reserve )

Kerb Weight 116 Kg (Kick) / 119 kg (Self)

Minimum Turning 1.90 mtrs.
