Phoenix

TECHNICAL SPECIFICATION

--------------------------------------------------------------------------------------------------

Engine

Type Air-c4-stroke single cylinder OHC

Displacement 124.8 c.c

Max. Power 6.72 KW (9.1Ps) @ 7000 RPM

Max. Torque 10.35 N-m @ 4000 RPM

Bore x Stroke 52.4 x 57.8 mm

Compression Ratio 9.1 : 1

Starting Self start / Kick start

Ingnition FTi - Full Transistorised Ignition

Engine oil grade SAE 10 W 30 SJ grade

Transmission & Chassis

Cluch Multi-plate wet

Gear box 4 Speed constant mesh

Chassis Type Tubular double cradle type

Suspension

Front Telescopic hydraulic shock absorbers

Rear Swing arm with hydraulic shock absorber

Brakes

Front Brake 240 mm Dia, Pad - Non-asbestos type

Rear Brake Drum Internal expanding shoe type (130 mm); Liners - Non-asbestos type

Wheels & Tyres

Rim Size Front 18 x 1.60, Alloy wheel

Rim Size Rear 18 x 1.60, Alloy wheel

Tyre Size Front 2.75 x 18 - 42 P/ 4 PR

Tyre Size Rear 3.00 x 18 - 52 P / 6 PR

Electricals

Battery 12V-2.5 Ah (Kick) / 5 Ah (Self)

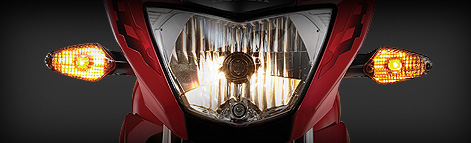

Head Light 12V-35W/35W-Halogen bulb MFR

Tail Stop Lamp 12V-5 / 21 W (MFR)

Dimensions

Length 2005 x 735 x 1070 mm

Wheelbase 1265 mm

Ground Clearance 150 mm

Fuel Tank Capacity 12 ltrs (Reserve 1.5 ltrs)

Kerb Weight 125 Kg (Kick) / 129kg (Self)
